Project Overview

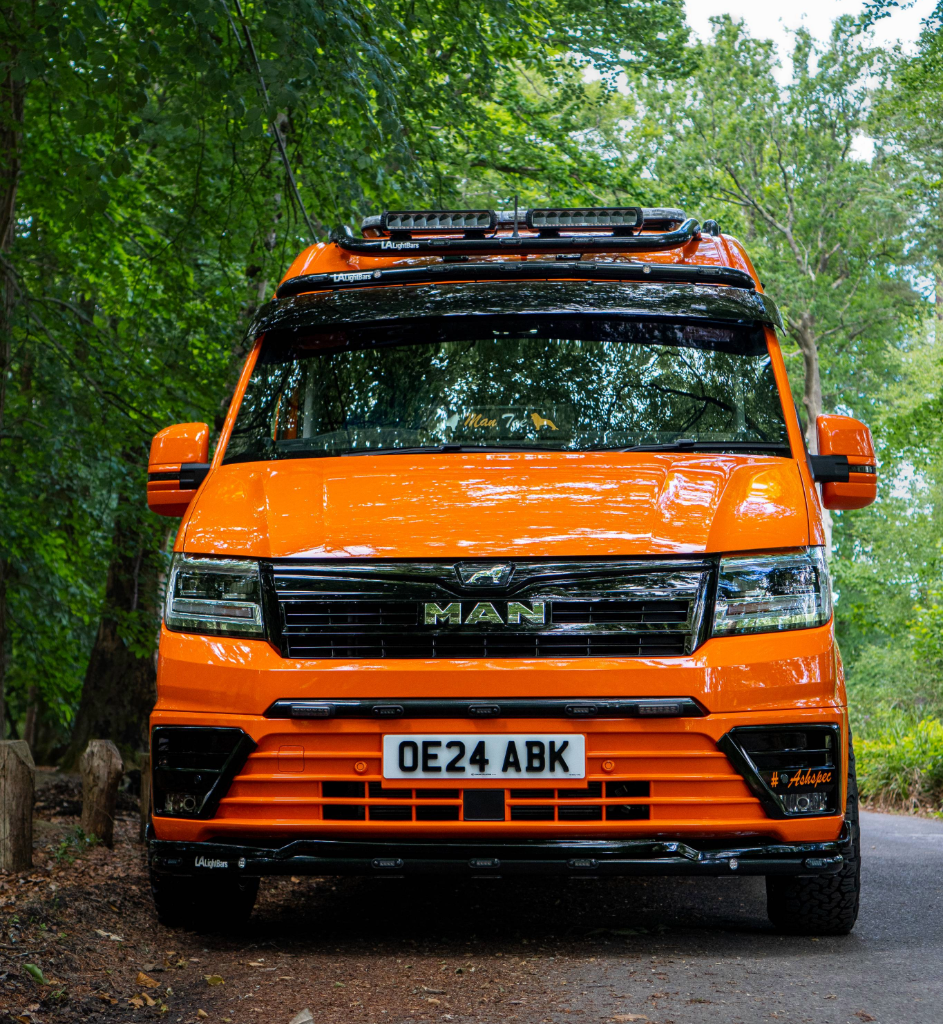

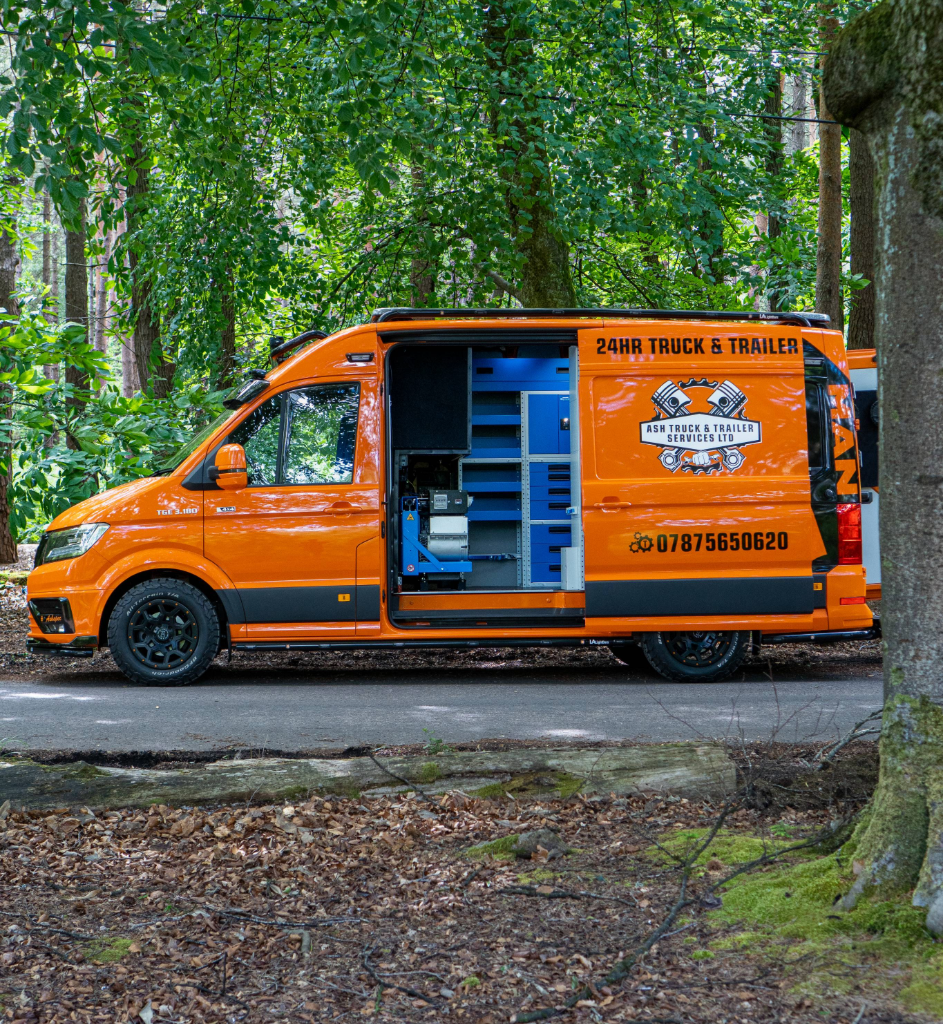

Van Racking Solutions delivered a robust, professional-grade conversion for Ash Truck & Trailer’s MAN TGE van. This vehicle is used for mobile compressor servicing, and the fit-out was designed to streamline operations, enhance safety, and keep heavy-duty equipment secure, accessible, and efficiently stowed.

Customer Requirements

Ash Truck & Trailer required a layout that:

• Custom MAN van racking that provides structured, secure storage for a wide range of tools, fittings, and parts
• Accommodates a heavy-duty compressor-generator unit (MIGI 602)
• Enables fast, efficient servicing and diagnostics on-site
• Maintains clear access and workflow throughout the van
• Offers a clean, branded professional appearance both inside and out

Racking Configuration

Nearside Racking

The nearside system features multiple deep drawers, ideal for storing larger hand tools, consumables, and parts. Above these are open shelf sections, perfect for quick-grab equipment or bulkier items. The layout ensures technicians can access essential equipment quickly, reducing downtime on-site.

Offside Racking

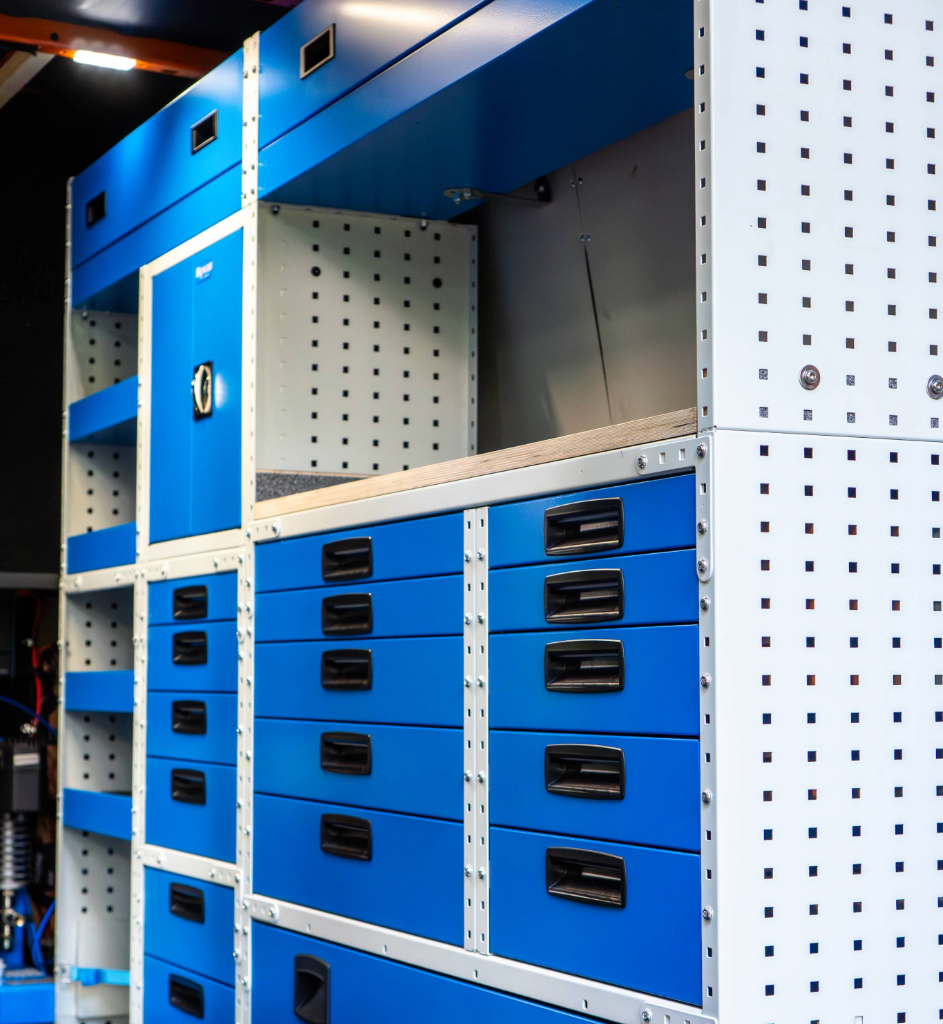

The offside section is equipped with a run of stacked drawer units, flanked by small parts bins and divided storage cubbies. These are perfect for organising fittings, connectors, and smaller service tools in a logical, repeatable setup. A key feature here is the integrated 24mm marine-grade resin-coated plywood workbench — a durable and chemical-resistant surface that supports in-van servicing, light assembly, or repair work. This heavy-duty bench allows the technician to work securely without unloading equipment onto the ground.

Bulkhead Area

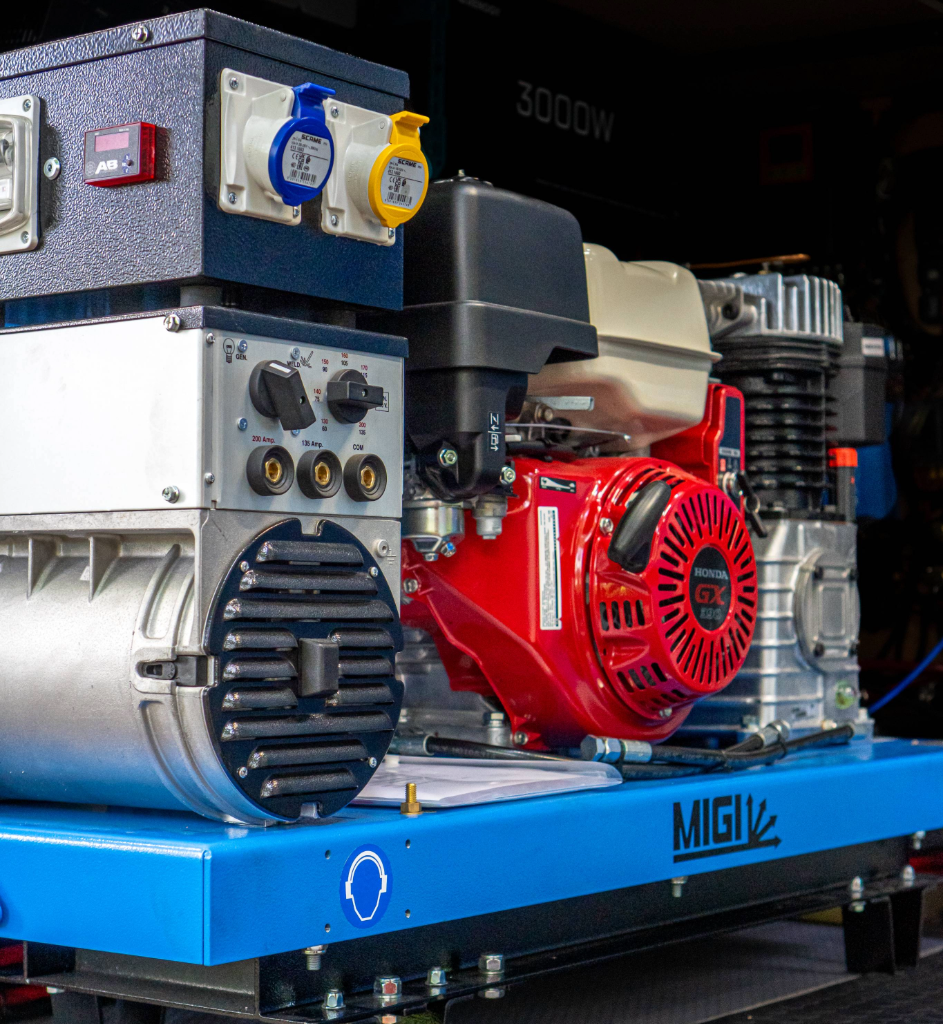

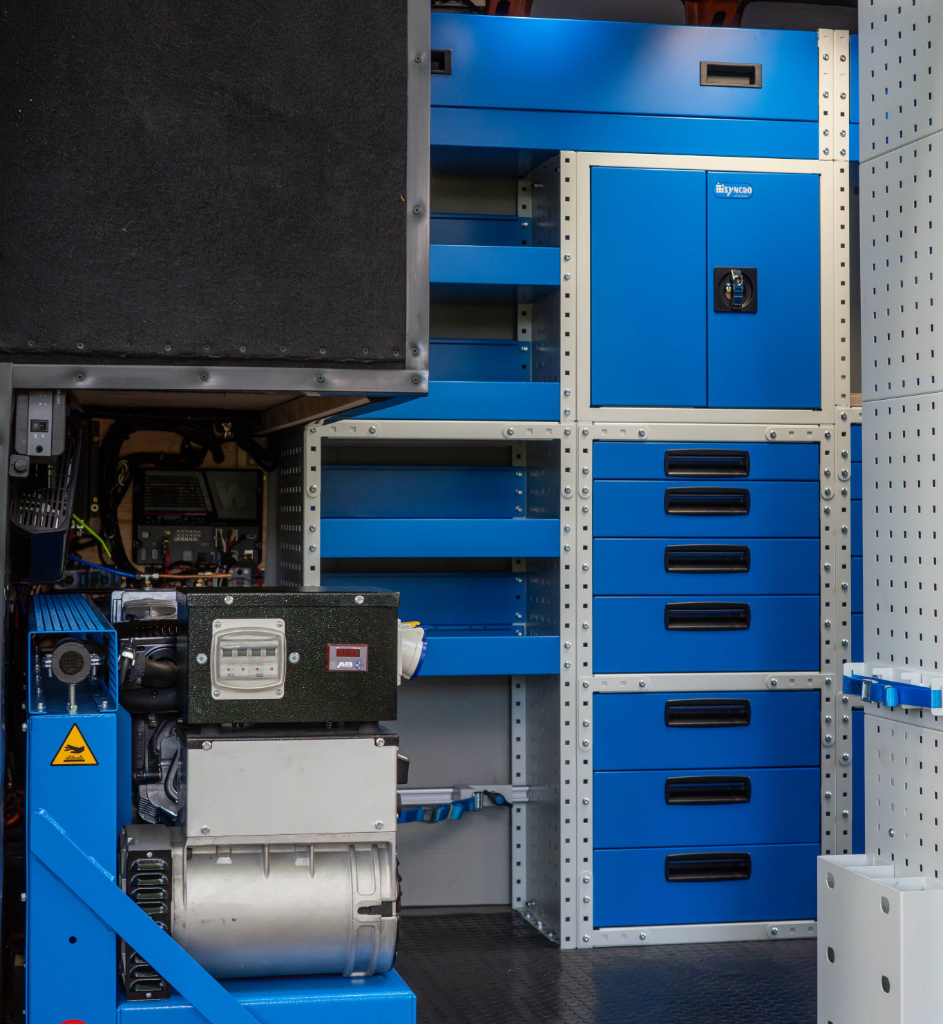

At the bulkhead, the powerful MIGI 602 compressor-generator has been installed securely to ensure maximum stability and operational safety. Its positioning allows for easy access to controls while maintaining optimal balance within the van. The layout also preserves airflow and clearance for routine maintenance.

Rear Access

The rear doors open directly into a clear central aisle, allowing unobstructed movement from front to back. This access pathway ensures that technicians can reach any tool or piece of equipment without having to remove or reposition other items — crucial for jobs where speed and organisation matter.

Key Equipment

• MIGI 602 Compressor-Generator – Bulkhead-mounted, powering pneumatic tools and air services on-site
• Drawer Storage Modules – Secure, labelled compartments for tools, parts, and consumables
• Marine-Grade Workbench – Stable, resin-coated surface for hose prep, assembly, or repair
• Small Parts Bins – Logical organisation of fittings, connectors, and small spares
• Clear Centre Aisle – Easy navigation and safe access across the van layout
